  CCD53 Series Compensated Amplified Pressure Sensor with ceramic substrate   Senphire offers high value added products for sensing applications. We term our offerings the Sapphire of sensing
Grey Blank

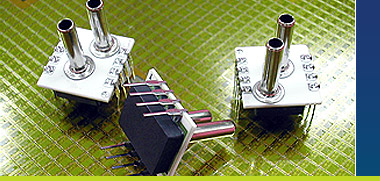

The CCD 53 Series are fully compensated and amplified pressure sensors. Featuring a rigid ceramic substrate the CCD Series delivers excellent thermal and long term stability.
white blank
CCD 53 Series
white blank
Based on Senphire's proprietary sensor platform the CCD 53 Series incorporates a silicon MEMs pressure sensor with the latest ASIC technology. The series incorporates multi-order digital compensation of offset, span, non-linearity and temperature effects with compensation coefficients stored in an on-board EEPROM. The rigid ceramic substrate allows the device to be specified to a very low pressure.

The CCD 53 Series is one of Senphire’s most flexible products and can be ordered with a variety of pressure and port configurations giving it the ability to be specified in Gage, Absolute or Differential pressure with pressure ranges from 0.15 to 150 psi.

Key Features
Parameter Value Remarks
Operating Voltage 2.7-5.5V
Available Pressure Ranges 0.15, 0.3, 0.5, 1, 2, 3, 5 ,7 , 15, 30, 50, 100 and 150 psi Gage, Absolute (15 psi onwards) or Differential
Accuracy 2.2% or 1.8% FS For low pressure and standard versions respectively.
2.7% FS for 0.15 psi range
Output Analog or Digital
Package 8 pin ceramic DIP package with 1 or 2 ports

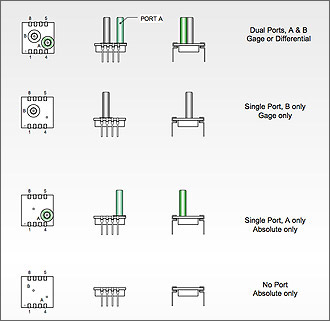

CCD53 Series Pressure Sensor Mechanical Outline Drawing with one port for Gage pressure, no ports for Absolute pressure and two ports for Differential Pressure
