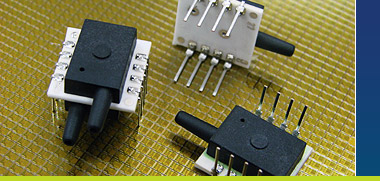

  CCD54 Series Compensated Amplified Low Profile Pressure Sensor with ceramic substrate can be specified as a very low pressure sensor   Senphire offers high value added products. We term our offerings the Sapphire of sensing
Grey Blank
The CCD 54 Series are fully compensated and amplified pressure sensors. With a low profile package (height of less than 9mm) and forward facing ports, the series is ideal for applications with limited height such as in slim handheld devices. The rigid ceramic substrate allows the device to be specified as a very low pressure sensor
white blank
CCD 54 Series
white blank
Based on Senphire’s proprietary sensor platform the CCD 54 Series incorporates a silicon MEMs pressure sensor with the latest ASIC technology. The series incorporates multi-order digital compensation of offset, span, non-linearity and temperature effects with compensation coefficients stored in an on-board EEPROM.

Typical applications include medical applications such as breath analysis and flow where a very low pressure sensor is required.

The CCD 54 Series is one of Senphire’s most flexible products and can be ordered with a variety of pressure and port configurations giving it the ability to be specified in Gage, Absolute or Differential pressure with pressure ranges from 0.15 to 150 psi.

Key Features
Parameter Value Remarks
Operating Voltage 2.7-5.5V
Available Pressure Ranges 0.15, 0.3, 0.5, 1, 2, 3, 5 ,7 , 15, 30, 50, 100 and 150 psi Gage, Absolute (15 psi onwards) or Differential
Accuracy 2.2% or 1.8% FS For low pressure and standard versions respectively.
2.7% FS for 0.15 psi range
Output Analog or Digital
Package 8 pin ceramic DIP package with 1 or 2 ports Low Profile

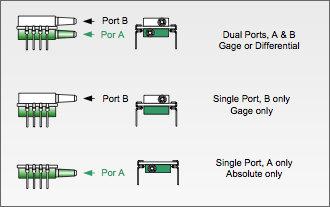

CCD54 Series Pressure Sensor Mechanical Outline Drawing with one port for Gage pressure, no port for  Absolute pressure and two ports for Differential Pressure

« View other pressure sensor products

 Senphire Ltd. All Rights Reserved

white blank
Datasheet Download
white blank
white blank
white blank

Analog Output
» CCD_54A_LP.pdf (for 0.15 to 3 psi)
» CCD_54A_STD.pdf (for 5 to 150 psi)

Digital Output
»
CCD_54D_LP.pdf (for 0.15 to 3 psi)
» CCD_54D_STD.pdf (for 5 to 150 psi)

Extended Temperature Version                 (-40 to 125 °C)
»
CCD_54A_Extn.pdf (for 5 to 150 psi)
