  SCD51 Series MEMS Uncompensated Pressures Sensors with ceramic substrate gage and absolute pressure   Senphire provides high value added products for sensing applications. We term our offerings the Sapphire of sensing
Grey Blank
The SCD 51 Series are uncompensated pressure sensors. The series features a small surface mount ceramic package with an optional port to provide the pressure connection.
white blank

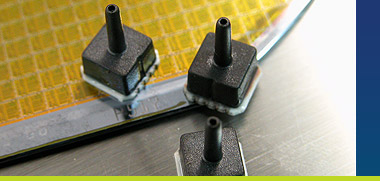

SCD 51 Series
white blank
Based on Senphire’s proprietary packaging techniques the series incorporates a high quality silicon MEMs pressure sensor as the sensing element.

The SCD series provides a compact foot print for the tightest space requirements. It is particularly well suited to high volume OEM applications that require the flexibility of either gage or absolute pressure sensors.

The SCD 51 Series can be specified with pressure ranges from 5-100 psi.

Key Features
Parameter Value Remarks
Operating Voltage 3-10V
Available Pressure Ranges 5, 15 and 100 psi Gage, Absolute, 5 psi available in Gage only
Linearity 0.3 % FS
Configuration Closed bridge
Package Ceramic SMT package with or without plastic port

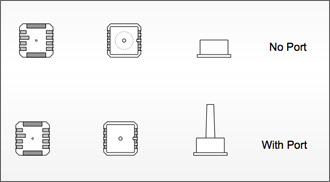

SCD51 Series Pressure Sensor Mechanical Outline Drawing with no port ( nipple ) for absolute pressure and port for gage pressure

« View other pressure sensor products

 Senphire Ltd. All Rights Reserved
white blank
Datasheet Download
white blank
white blank

Analog Output
» SCD_51_STD.pdf (for 5 to 100 psi)
