  SIP32 Series Uncompensated Gage Low Cost Pressure Sensor DIP   Senphire offers high value added products for sensing applications. We term our offerings the Sapphire of sensing
Grey Blank
The SIP 32 Series are uncompensated low cost pressure sensors for gage pressure applications. The series features a small plastic package with a port ( nipple ) to provide the pressure connection.
white blank

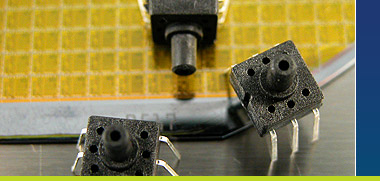

SIP 32 Series
white blank
Based on Senphire’s proprietary packaging techniques the series incorporates a high quality silicon MEMs pressure sensor as the sensing element. The 5 psi version is widely used in blood pressure and air mattress pressure measurement where a low cost pressure sensor is critical. For higher pressures 15 psi and 100 psi versions are also available.

The aim of the SIP series is to allow customers to integrate a gage pressure sensor into their systems at costs close to that of a bare MEMs pressure die. It is particularly well suited to high volume OEM applications such as home use blood pressure monitors, gauges and air mattresses.

The SIP 32 Series can be specified with pressure ranges from 5-100 psi. For a compensated amplified gage pressure sensor please refer to our SLP33.

Key Features
Parameter Value Remarks
Operating Voltage 3-10V
Available Pressure Ranges 5, 15 and 100 psi Gage
Linearity 0.3 % FS
Configuration Either open or closed bridge
Package 6 pin plastic DIP or SMT package with port

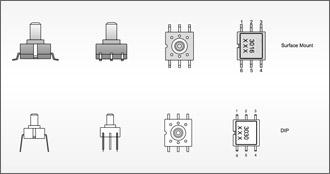

SIP32 Series Gage Pressure Sensor Mechanical Outline Drawing in SMT and DIP

« View other pressure sensor products

 Senphire Ltd. All Rights Reserved
white blank
Datasheet Download
white blank
white blank
white blank

Analog Output
» SIP_32_STD.pdf (for 5 to 100 psi)
