  SLP35 Series Compensated Amplified Small Dual Port Differential Pressure Sensor ( SMT Version )   Senphire offers high value added products for sensing applications. We term our offerings the Sapphire of sensing
Grey Blank
The SLP 35 Series are fully compensated and amplified differential pressure sensors. With a footprint of 10mm by 10.2mm and height of 10mm the series is one of the smallest sensors on offer when considering a dual port differential pressure sensor. The Series enables a differential pressure sensor to be fitted into the most compact enclosures. Applications include HVAC controllers, medical or flow instruments and pneumatics.
white blank

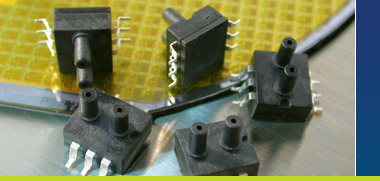

SLP 35 Series
white blank
Based on Senphire’s proprietary sensor platform the SLP 35 Series incorporates a silicon MEMs pressure sensor with the latest ASIC technology. The series incorporates multi-order digital compensation of offset, span, non-linearity and temperature effects with compensation coefficients stored in an on-chip EEPROM.

The SLP 35 Series can be specified with pressure ranges from 0.3-30 psi.

Key Features
Parameter Value Remarks
Operating Voltage 2.7-5.5V.
Available Pressure Ranges 0.3, 0.5, 1, 2, 3, 5, 7, 15, 30, 50 and 100 psi Gage, Differential
Accuracy 2.5%* or 1.8% FS For low pressure and standard versions respectively
Output Analog or Digital
Package 6 pin plastic DIP or SMT package with two ports
*Low pressure accuracy assumes auto-zero

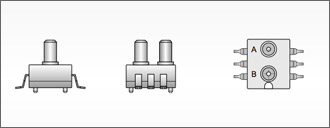

SLP35 Series Differential Pressure Sensor Mechanical Outline Drawing

« View other pressure sensor products

 Senphire Ltd. All Rights Reserved
white blank
Datasheet Download
white blank
white blank
white blank

Analog Output
» SLP_35A_LP.pdf (for 0.3 to 3 psi)
» SLP_35A_STD.pdf (for 5 to 100 psi)

Digital Output
SLP_35D_LP.pdf (for 0.3 to 3 psi)
» SLP_35D_STD.pdf (for 5 to 100 psi)
