  STX13 Series Compensated Amplified Pressure Sensor with bolt holes for mounting for low pressure and differential pressure   Senphire offers high value added products for sensing applications. We term our offerings the Sapphire of sensing
Grey Blank

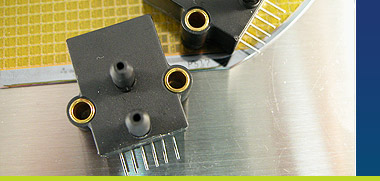

The STX 13 Series are fully compensated and amplified pressure sensors. The series features a rugged plastic package with bolt holes for easy mounting. Careful design minimizes stress errors caused by thermal mismatch.
white blank
STX 13 Series
white blank
With Senphire’s proprietary sensor platform the STX 13 Series incorporates a silicon MEMs pressure sensor with the latest ASIC technology. The series incorporates multi-order digital compensation of offset, span, non-linearity and temperature effects with compensation coefficients stored in an on-chip EEPROM.

The STX 13 Series can be specified with pressure ranges from 0.3-3 psi.

Key Features
Parameter Value Remarks
Operating Voltage 2.7-5.5V
Available Pressure Ranges 0.15, 0.3, 0.5, 1, 2, 3 psi Gage, Differential
Accuracy 2.2% FS 2.7% FS for 0.15 psi range
Output Analog or Digital
Package 6 pin plastic DIP package with two ports and bolt holes

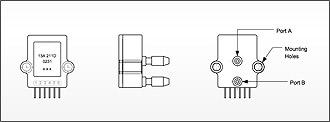

STX13 Series Pressure Sensor Mechanical Outline Drawing

« View other pressure sensor products

 Senphire Ltd. All Rights Reserved
white blank
Datasheet Download
white blank
white blank
white blank

Analog Output
» STX_13A_LP.pdf (for 0.3 to 2 psi)
