  MAP36 Series Compensated Amplified Pressure sensors in Button ( No Port Suitable for MAP Sensor applications ), Opposing and Parallel Port ( Nipple) configurations   Senphire offers high value added products for sensing applications. We term our offerings the Sapphire of sensing
Grey Blank
The MAP 36 Series are fully compensated and amplified pressure sensors. The series can be ordered with a variety of port ( nipple ) options. Whether it is the standard button cell, opposing or parallel ports the MAP 36 Series can be adapted for mounting to almost any application such as under an automobile hood, inside machines and in industrial equipment. The series is an ideal manifold absolute pressure sensor or MAP sensor.
white blank

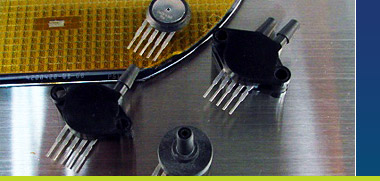

MAP36 Series
white blank
Based on Senphire’s proprietary sensor platform the MAP 36 Series incorporates a silicon MEMs pressure sensor with the latest ASIC technology. The series incorporates multi-order digital compensation of offset, span, non-linearity and temperature effects with compensation coefficients stored in an on-board EEPROM.

Applications are numerous but include Manifold Absolute Pressure or MAP Sensor, pneumatic pressure and fuel vapor pressure. The round button package also find many applications in water sensing as the design provides for easy sealing.

The MAP 36 Series is one of Senphire's most flexible pressure sensors and can be specified in Gage, Absolute or Differential pressure with pressure ranges from 0.3 to 100 psi.

Key Features
Parameter Value Remarks
Operating Voltage 2.7-5.5V
Available Pressure Ranges 0.3, 0.5, 1, 2, 3, 5, 7, 15, 30, 50 and 100 psi Gage, Absolute (15 psi onwards) or Differential
Accuracy 2.5%* or 1.8% FS For low pressure and standard versions respectively.
Output Analog or Digital
Package 5 pin plastic button cell package with 1, 2 or no ports
*Low pressure accuracy assumes auto-zero

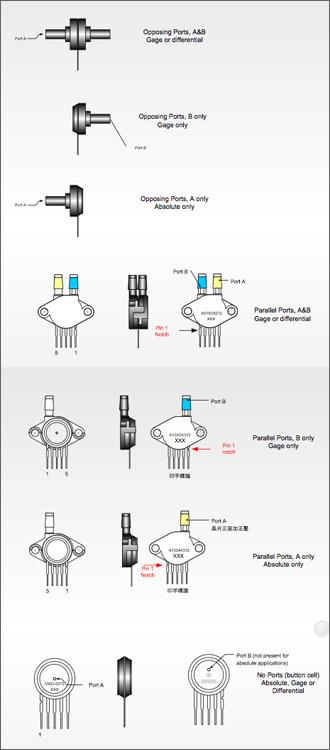

MAP 36 Sensor Pressure Sensor Mechanical Outline Drawing with Button ( absolute pressure ) opposing or parallel port (nipple) configurations suitable for gage pressure and differential pressure

« View other pressure sensor products

 Senphire Ltd. All Rights Reserved
white blank
Datasheet Download
white blank
white blank
white blank

Analog Output
» MAP_36A_LP.pdf (for 0.15 to 3 psi)
» MAP_36A_STD.pdf (for 5 to 100 psi)

Digital Output
MAP_36D_LP.pdf (for 0.15 to 3 psi)
» MAP_36D_STD.pdf (for 5 to 100 psi)

Extended Temperature Version                 (-40 to 125 °C)
MAP_36A_Extn.pdf (for 5 to 100 psi)
