  SST88 Flush Mount Pressure Transmitter   Senphire offers high value added products for sensing applications. We term our offerings the Sapphire of sensing
Grey Blank
The SST 88 Series from Senphire are flush mount industrial pressure transmitters suitable for different types of media. They provide resistance to the harshest media. The underlying sensor element is a MEMs pressure encased in a stainless steel (SS316) housing.
white blank

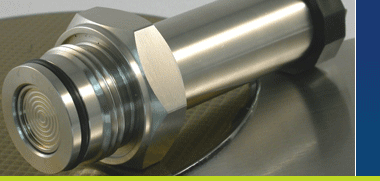

SST88 Series Flush Mount Transmitters
white blank
Based on Senphire’s proprietary sensor platform the SST 88 Series incorporates a silicon MEMs pressure sensor with the latest ASIC technology. The series incorporates multi-order digital compensation of offset, span, non-linearity and temperature effects with compensation coefficients stored in an on-board EEPROM.

The series is Senphire's flush mount offering for industrial use and comes with all the standard outputs customers have come to expect such as 4-20mA, 0-10V and 0-5V.

The flush mount construction makes it ideal for a sensing a variety of media such as liquids, gas and slurry while the SS 316 membrane provides resistance to even the harshest media. Applications include water level sensing, food processing, waste gas abatement and many others.

The SST 88 Series can be ordered in Gage pressure with pressure ranges from 0.3 psi to 25 bar. Absolute ranges are possible through customization. Contact us for more details.

Key Features
Parameter Value Remarks
Operating Voltage 6-28V Lower end depends on Output Selected
Available Pressure Ranges 0.3, 0.5, 1.0, 2.0, 3.0, 5.0, 7.0, 10.0 psi and 1.0, 1.6, 2.5, 4.0, 6.0, 10, 25 bar Gage, Negative Gage (Vacuum)
Accuracy   See datasheet for more details
Output 4-20mA, 0-5V,

0-10V


Package Metal housing, flush mount Stainless Steel (SS316)

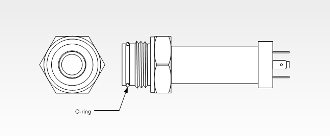

SST88 Series Pressure Transmitter Mechanical Outline Drawing

« View other industrial pressure transducer products

 Senphire Ltd. All Rights Reserved

white blank
Datasheet Download
white blank
white blank
white blank

Analog Output
» SST_88_STD.pdf (for 1 to 25 bar)

» SST_88_LP.pdf (for 0.3 to 10 psi)
